Typing Math — Using the Keypad in Modmath 4.0

The Modmath virtual keypad gives you access to numbers, operators, and advanced math symbols. This article is a complete guide to every key and tab.



Opening the Keypad

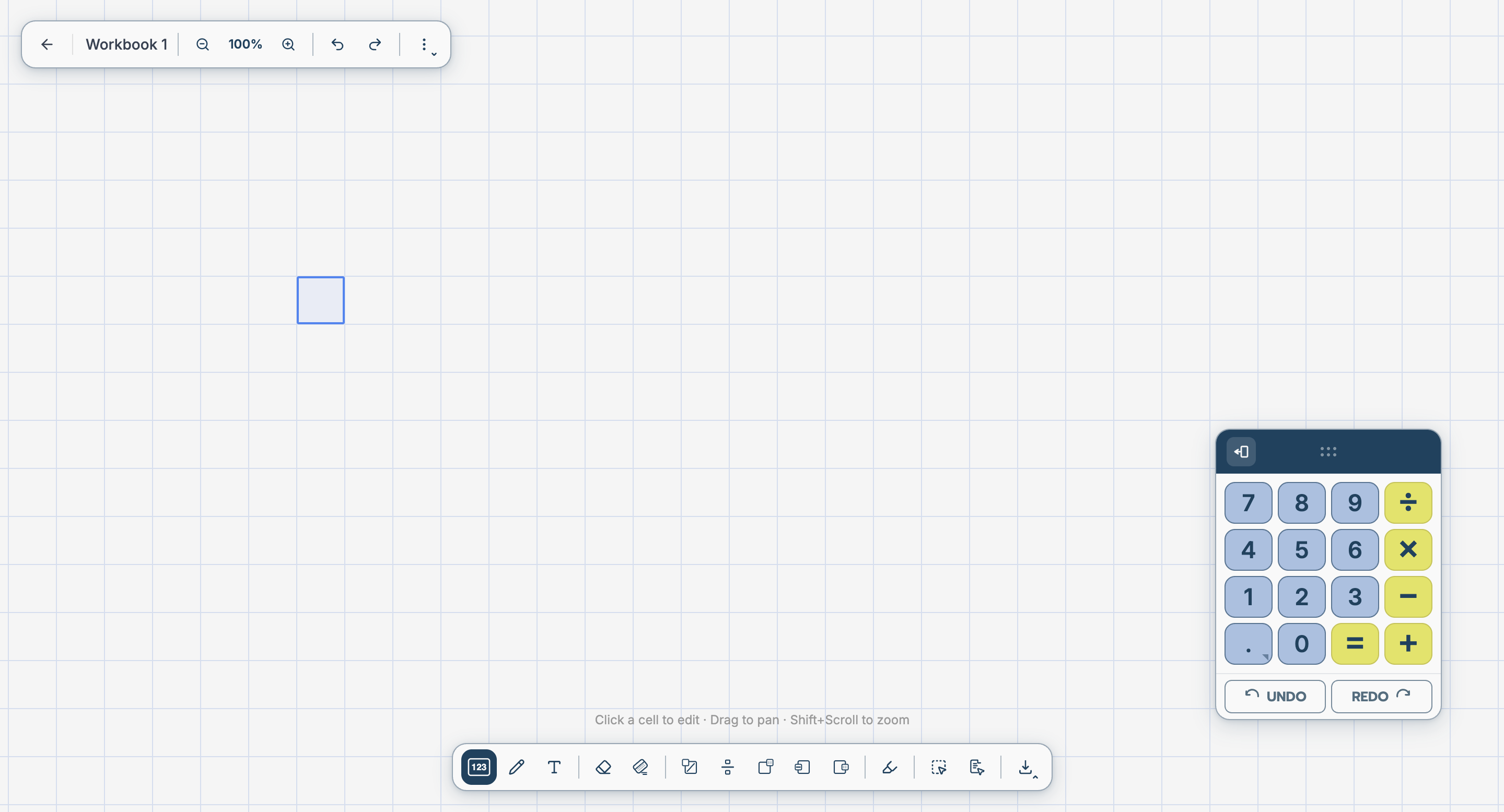

With the keypad tool selected (Add Equation ), tap any cell on the canvas to open the keypad. The keypad will show and hide based on the tool you have selected.



Collapsed vs. Expanded

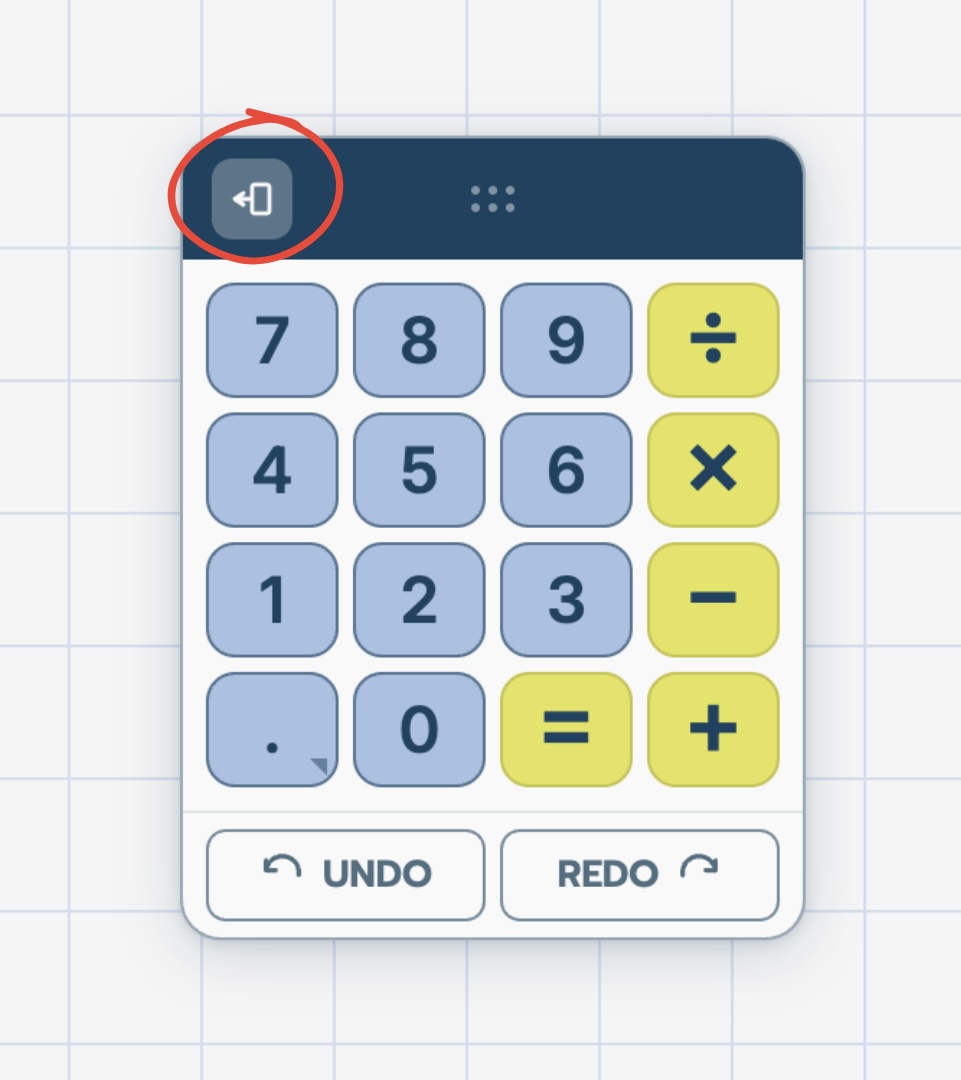

The keypad opens in collapsed mode — a compact keypad showing the number pad and Undo/Redo buttons.

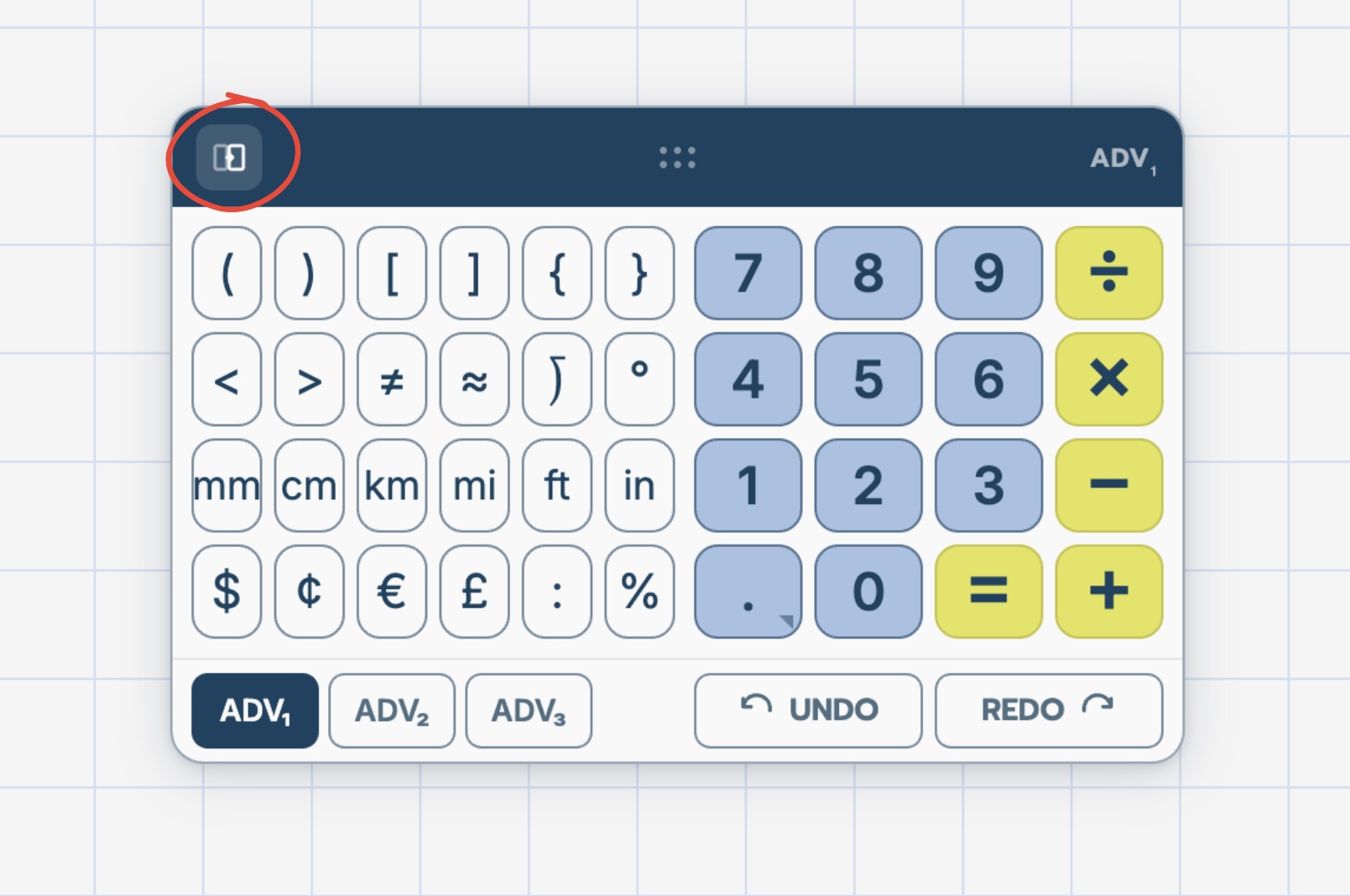

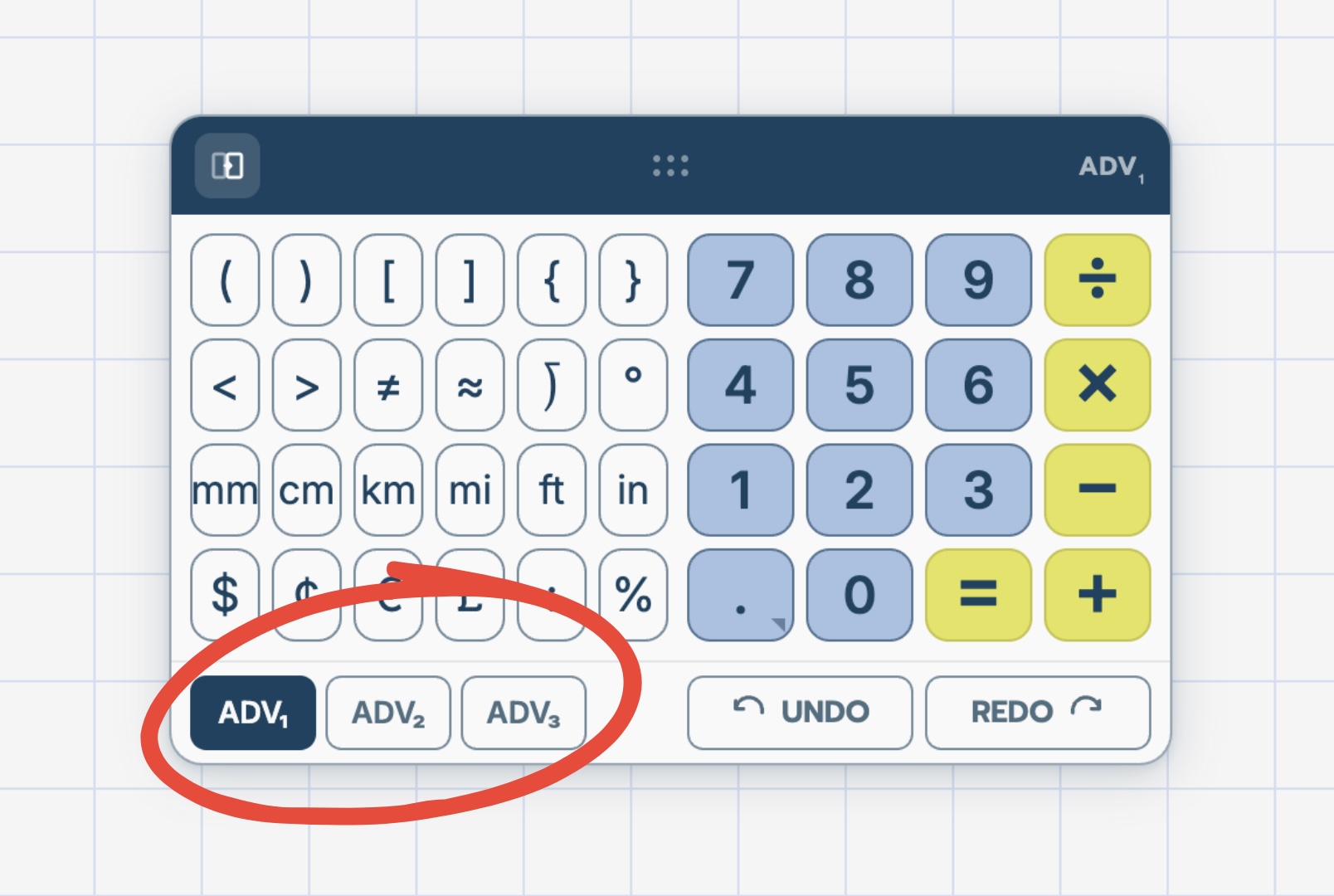

Tap the open keypad button (box with an arrow to the left) on the left edge of the keypad to expand it. The keypad grows to show the other tabs ADV1, ADV2, and ADV3.

Tap the close keypad button (arrow now pointing the other direction) to collapse.



Number Pad (always visible)

Row	Keys
Row 1	7 · 8 · 9 · ÷
Row 2	4 · 5 · 6 · ×
Row 3	1 · 2 · 3 · −

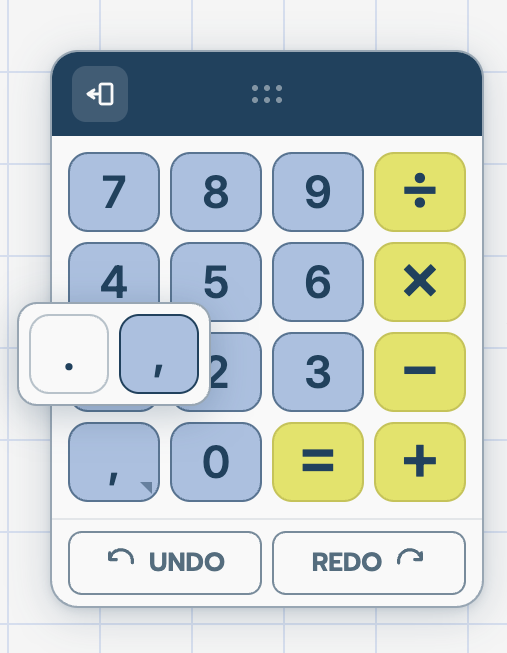

Row 4	, or . · 0 · = · +

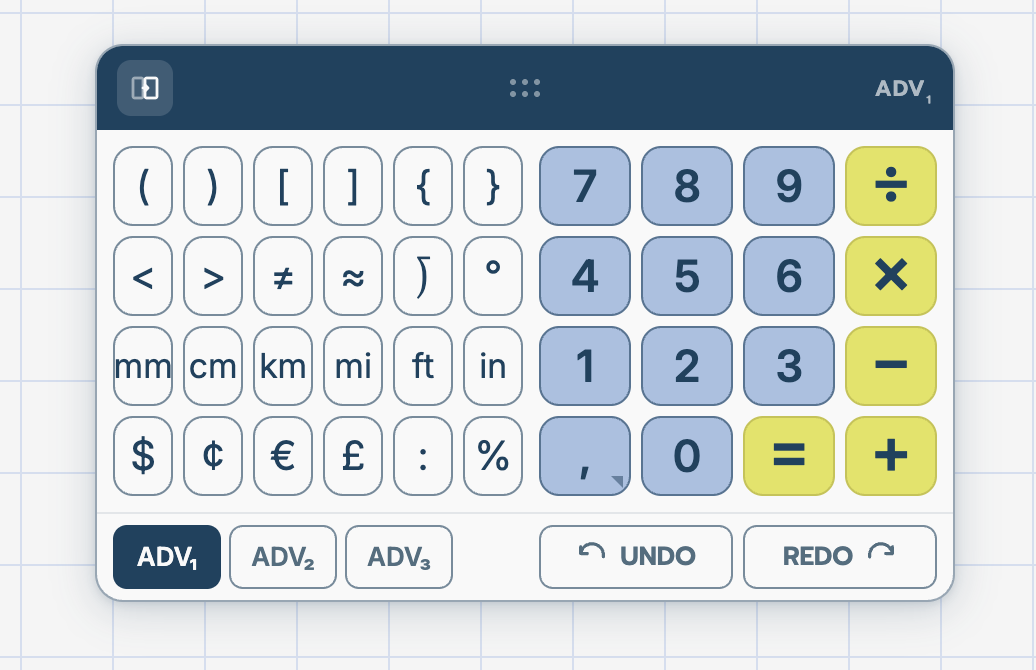

ADV1 Tab

Row	Keys
Row 1	( ) [ ] { }
Row 2	< > ≠ ≈ ⟌ °
Row 3	mm · cm · km · mi · ft · in
Row 4	$ · ¢ · € · £ · : · %

Key notes:

• ⟌ — Long division symbol. Automatically draws a vinculum (horizontal line) above the dividend cells.
• ° — Degree symbol for angles and temperature.
• Measurement units (mm, cm, etc.) insert as text labels.

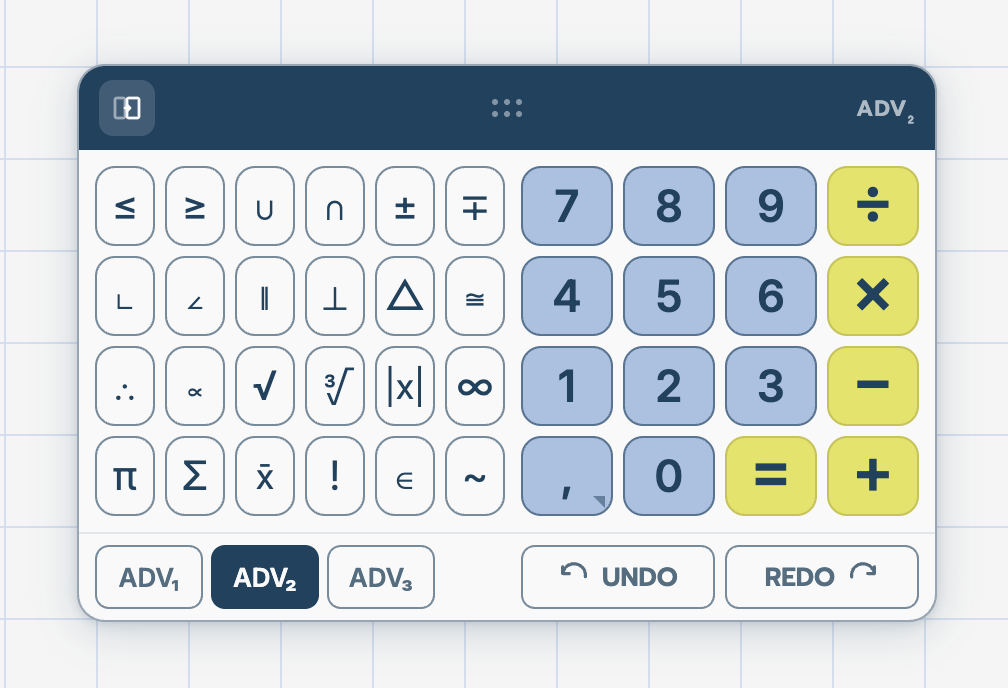

ADV2 Tab

Row	Keys
Row 1	≤ · ≥ · ∪ · ∩ · ± · ∓
Row 2	∟ · ∠ · ∥ · ⊥ · △ · ≅
Row 3	∴ · ∝ · √ · ∛ · |x| · ∞
Row 4	π · Σ · x̄ · ! · ∈ · ~

Key notes:

• √ / ∛ — Square root and cube root symbols.
• |x| — Absolute value bars.
• x̄ — Mean (x-bar) symbol.
• ∈ — Element of (set notation).

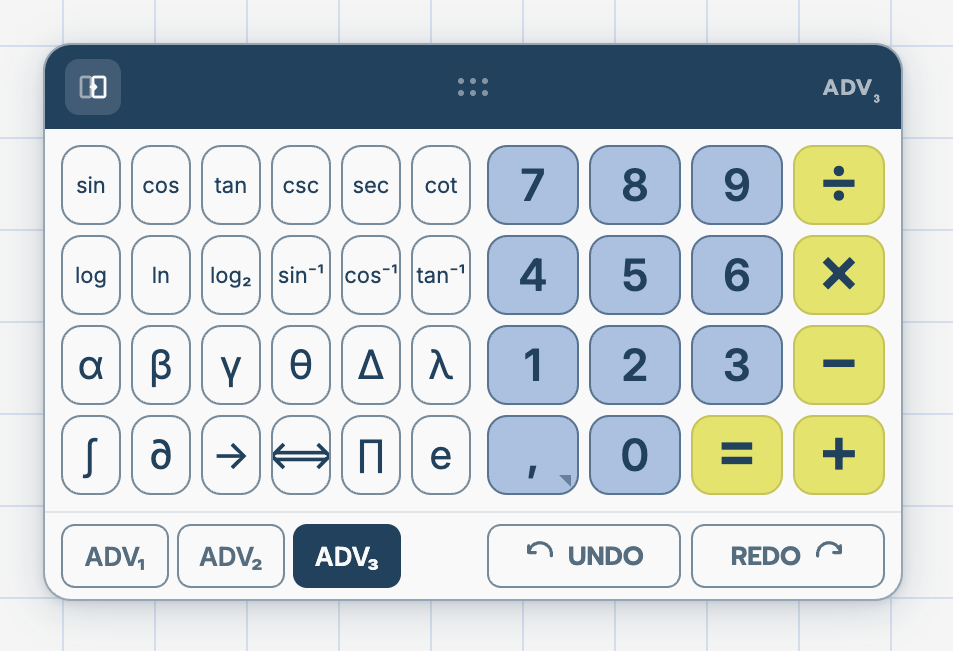

ADV3 Tab

Row	Keys
Row 1	sin · cos · tan · csc · sec · cot
Row 2	log · ln · log₂ · sin⁻¹ · cos⁻¹ · tan⁻¹
Row 3	α · β · γ · θ · Δ · λ
Row 4	∫ · ∂ · → · ⟺ · ∏ · e

Key notes:

• Trigonometric functions insert as text labels (sin, cos, etc.).
• sin⁻¹ / cos⁻¹ / tan⁻¹ — Inverse trig functions.
• α β γ θ Δ λ — Common Greek letters.
• ∫ — Integral symbol. ∂ — Partial derivative.



Undo and Redo

UNDO and REDO buttons appear in the bottom bar of the keypad at all times (collapsed or expanded).

• UNDO — Reverses your last action.
• REDO — Reapplies what you just undid.


Tips

• Use the negative sign key (−) in the toolbar at the top to make a number negative. This is different from the subtraction operator (−) in the number pad.

Need additional help?

Submit a ticket on our HelpCenter.
